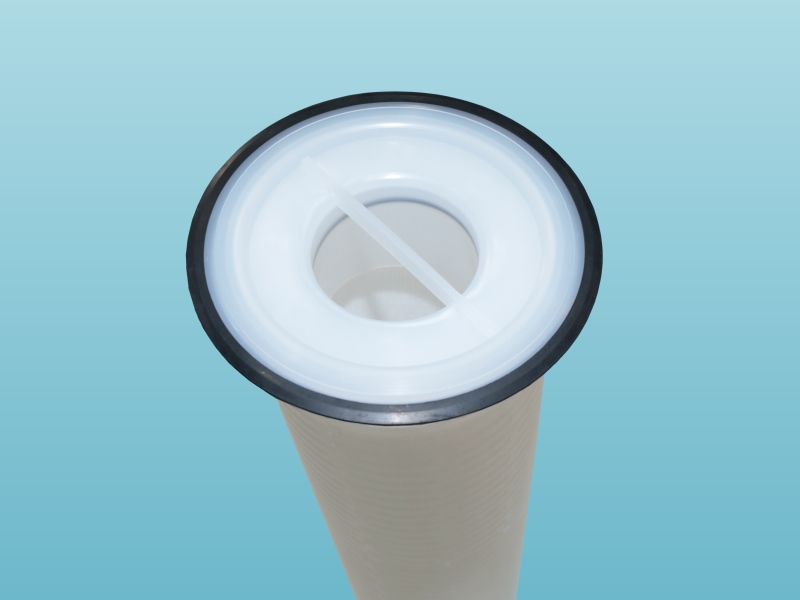

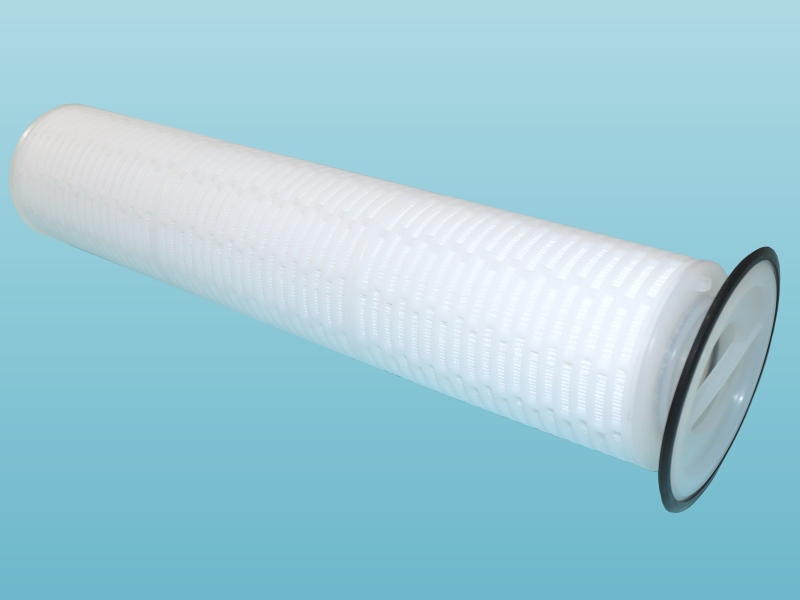

CMYH-PP7 Large Flow folded filter
Type：Filter Products
Brief：Polytetrafluoroethylene film, adjustable interface
CMYH-PP7 Large Flow folded filter Features
| filter material | Polypropylene | Aperture （μm） | 1-150 |
| Maximum pressure difference | 3.4bar@82°C | size（Inch） | 16、32Inch |
Operating temperature | 82°C | Recommended replacement timing | 2.4 bar +20°C |
Outer diameter | 188mm(7 Inch) | O-ring | EPDM、NBR |
Maximum flow | BAG1-450LPM | ||
CMYH-PP7 Large Flow folded filter specification
CMYHPP7 | Corresponding number | ||
Membrane material | length | Precision | O-ring |
Polypropylene=PP | BAG1 | 1μm=0010 | EPDM=E |
5μm=0050 | |||
10μm=0100 | |||
BAG2 | 25μm=0250 | ||
| 40μm=0300 | NBR=N | ||
| 50μm=0500 | |||
Special size can be customized | 75μm=0750 | ||
| 100μm=1000 | |||
| 150μm=1500 | |||
