reads Water quality testing process:
replace the nozzle with this connector for testing before and after filtering. The raw water is tested for 30 minutes before filtering, and the machine prints one data every 5 minutes, a total of 6 data. (Because the value of raw water does not fluctuate much, the test time is shorter than the filtered one)

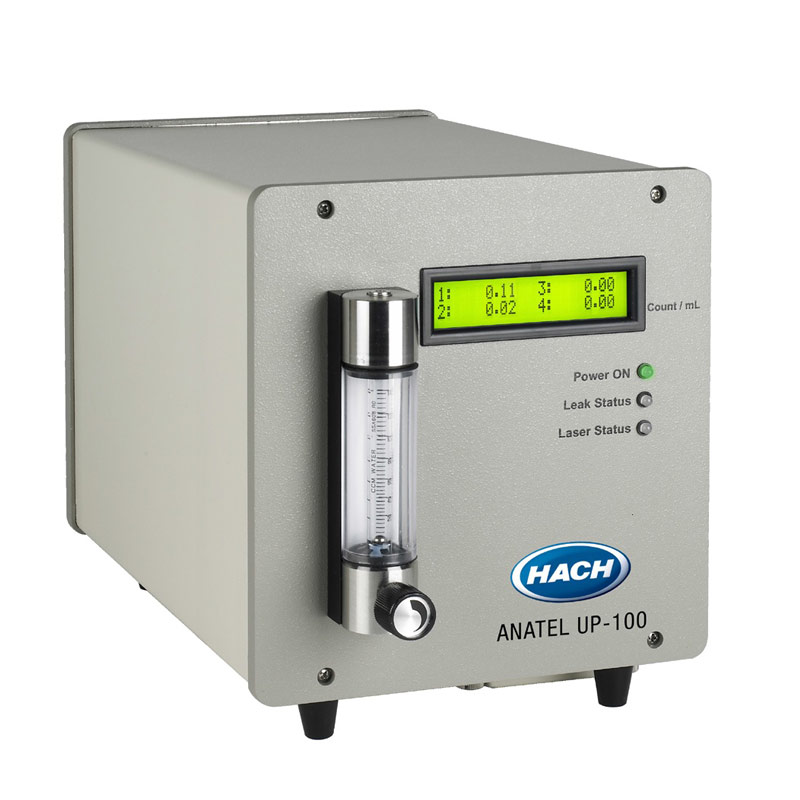

UP-100

Ultrapure water particle counter

  • All in one design of the whole machine, lightweight & easy to carry
  • The smallest particle size reaches: 0.1 um
  • With LCD screen, real-time display of data
  • Concentration limit reached: 100,000 particles/ml (the highest in the industry)
  • Zero count rate meets JISB9925 regulations
  • With a low-pulse Micro Pump, it can be applied to "sink measurement", and can be applied to pressure water pipes (On-line) and open water tanks (Off-line). It is the only solution in the industry
  • On-line connection, continuous testing, or real-time monitoring in the monitoring system

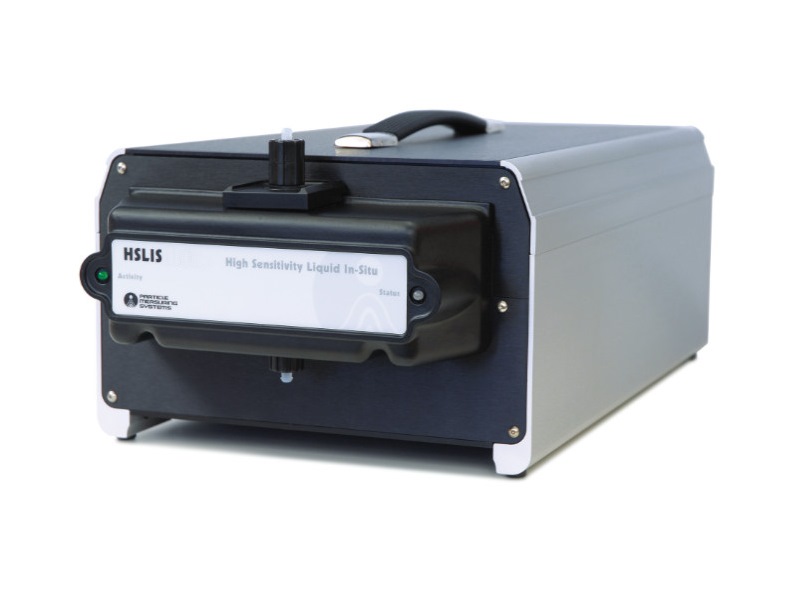

M100E

Liquid particle counter

The HSLIS-M100 particle counter provides continuous and real-time monitoring of the contamination level of corrosive liquids, including hydrogen fluoride (HF). The HSLIS particle counter can easily understand the characteristics of the working fluid. The combination of high sensitivity and low cost becomes more ideal when a large number of sensors are required and/or a long-term trend. The HSLIS particle counter is integrated into FacilityNet Software, which can be used to monitor multi-flow systems and provide dedicated local display and control functions.

Equipment brand model M100E
Manufacturer American PMS
Size range 0.1um〜1.0um
Channels 4
Channel sizes 0.1,0.2,0.5,1.0um
Flow rate 300ml/min
Use the above equipment in each plant area to monitor particle size

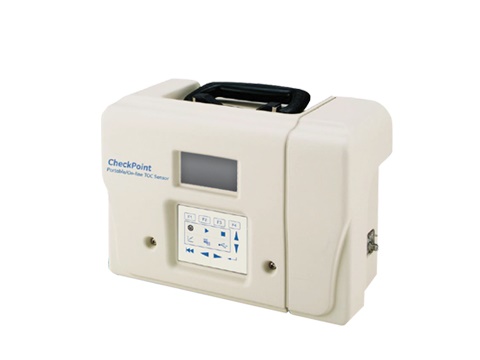

Checkpoint Specifications

Total Organic Carbon1
Linear Range (CheckPoint Pharma) 0.21 ppb to 1,000 ppb C
Linear Range (CheckPointe) 0.05 ppb to 1,000 ppb C
Instrument Accuracy2 ± 5% when measuring 500 ppb C of sucrose2,3
Precision (CheckPoint Pharma) The greater of < 1% RSD or 0.21 ppb for on-line measurements, 3.0% RSD at 500 ppb for grab samples
Precision (CheckPointe) The greater of < 1% RSD or 0.05 ppb for on-line measurements, 3.0% RSD at 500 ppb for grab samples
Analysis Modes On-line (average or timed); grab (with optional Vial Sampling Kit)
Analysis Time Selectable: 15 seconds to 8 hours on-line mode; 10 minutes grab mode
Ozone Compatibility (CheckPoint Pharma only) 50 ppb O3; 200 ppb O3 for 2 hours daily

Conductivity/Resistivity
Conductivity/Resistivity Range for TOC Max 1.4 μS/cm or Min 0.7 Mohm-cm from CO24
Conductivity/Resistivity Precision ± 0.5% RSD (20-40 °C or 68-104 °F)
Conductivity/Resistivity Accuracy ± 2.0%

Sensor Specifications
On-Line Sample Pressure 103–690 kPa (15–100 psig) (1.0–6.9 bar)
Low Pressure Samples -6.9–55 kPa (-1.0–8 psig) (-0.069–0.55 bar) with optional Low Pressure Sampling Kit
Required Sample Line Flow Rate 60 mL/min (high pressure) or 1 mL/min (low pressure)
Power Requirements 100-240 ± 10% VAC, 60 W, 50/60 Hz
Temperature (CheckPoint Pharma) Sample: 10-90 °C (50-194 °F); Ambient: 10-55 °C (50-131 °F)3
Temperature (CheckPointe) Sample: 10-60 °C (50-140 °F); Ambient: 10-40 °C (50-104 °F)
Humidity 90%
Altitude 3000 meters
Outputs Ethernet (Modbus TCP/IP), USB, plus two 4-20 mA, two alarms, and binary input with optional I/O board
Installation/Overvoltage Category II
Dimensions H: 25.40 cm (10.0 in); W: 30.48 cm (12.0 in); D: 15.24 cm (6 in)
Dimensions with Vial Sampling Kit H: 25.40 cm (10.0 in); W: 34.87 cm (13.7 in); D: 15.24 cm (6 in)
Weight — CheckPoint 2.9 kg (6.4 lb)
Weight — Vial Sampling Kit 0.6 kg (1.3 lb)
Industrial Ratings and Safety Certifications CE, ETL listed. Conforms to UL Std. 61010-1. Certified to CSA C22.2 No. 61010-1.
